Factory Price 2in3in4in5in6in Alu. PC anti glare IP40 Round Recessed Light Spotlight Ceiling Mounted Down Light for Home Furnishing Corridor Public Areas
− High luminous efficacy
− Direct replacement for compact fluorescent lamp downlights
− Energy savings up to 60 % (compared to luminaires that use CFL lamps)
− Very homogenous light
− Functional design
− Easy installation with fast connection
− 3 years guarantee
Specialized design apperance
108 processes
Each layer is carefully design
Len
Reflective cup
Aluminum structure with strong heat dissipation
High quality Hardware Spring
Beam angle:

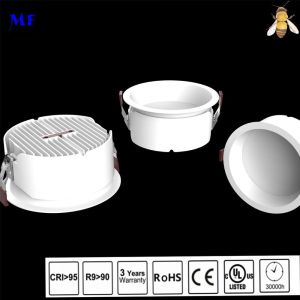

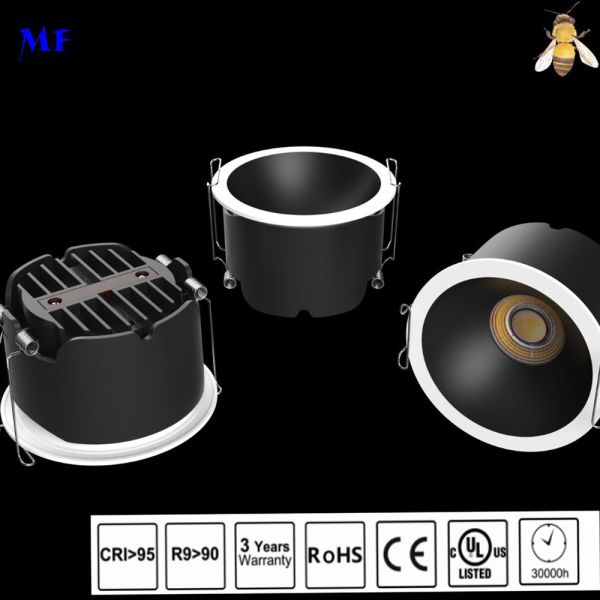

Product pictures:
Parameters
Electrical Data:
| Nominal Wattage | 10W/12W/15W/20W/30W/40W |
| Nominal Voltage | 100-240V |
| Mains Frequency | 50-60Hz |
| Nominal Current | 350,000mA |
| Power Factor λ | 0.9 |
| Protection Class | II |
| Operating Mode | Electronic Control Gear (ECG) |
Application & Mounting:
| Ambient Temperature Range | -20 °C~ 40°C |
| Type of Connection | Terminal, 2-pin |
| Type of Protection | IP40 |
| Dimmable | No |
| Mounting Type | Recessed |
| Mounting Location | Ceiling |
| Application Environment | Indoor |
| Mounting Diameter | 10W 75mm,12W 90mm,15W 100mm,20W 115mm,30W 145mm,40W 170mm |
| LED module Replaceable | Not replaceable |
| Lifespan L70/B50 at 25 °C | 30000 h1) |
| Number of Switching Cycles | 15000 |
Material & Color:
| Product Color | White Black |
| Housing Color | White Black Grey Red |
| Body Material | Aluminum |
| Mercury Content | 0.0mg |
| Diameter | 10W 82mm,12W 96mm,15W 106mm,20W 123mm,30W 155mm,40W 185mm |
| Length | 10W 82mm,12W 96mm,15W 106mm,20W 123mm,30W 155mm,40W 185mm |
| Height | 60.00 mm |
| Product Weight | 610.00g |
| Power | D(mm) | H(mm) | C(mm) |
| 10W | 82 | 53 | 75 |
| 12W | 96 | 58 | 90 |
| 15W | 106 | 63 | 100 |
| 20W | 123 | 68 | 115 |
| 30W | 155 | 76 | 145 |
| 40W | 185 | 83 | 170 |
| Luminous Flux | 10W 1000lm/12W 1200lm/15W 1500lm/20W 2000lm/30W 3000lm/40W 4000lm |
| Luminous Efficacy | 100 lm/W |
| Color Temperature | 3000K 4000K 6000K |
| Light Color (designation) | Warm White |
| CRI | ≥80 |
| Beam Angle | 24°36 °45 °50 °60 ° |
LED downlights are commonly used indoors in residential, commercial, public, and industrial spaces. They provide efficient and effective lighting for living areas, bedrooms, kitchens, offices, retail stores, restaurants, hotels, schools, libraries, hospitals, warehouses, and factories. LED downlights are popular due to their energy efficiency, long lifespan, and versatility, and can be customized to provide different light color, brightness, and beam angles to meet different needs.
